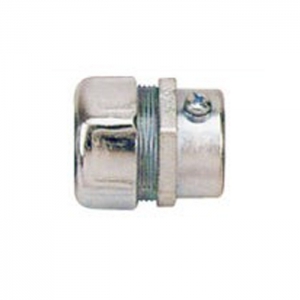

防水盒接頭 90 度 PF牙 (金屬料)
編號
YCL 90°
分享至
詳細說明
符合環保材質﹕ ROHS .jpg)
.jpg)
‧電鍍處理﹕電鎳鉻 TYPE ﹕YCL 90° PF牙
| 型號 | 規格 | Dimension (mm) | 牙制 | 包裝數量 | ||||
|
Catalog
No.
|
Nominal
Size
|
I.D | A | B | C | D | Thread |
Packing
Pcs/Bag
|
| YCL-03B | 3/8" | 11.2 | 20.9 | 30.0 | 13.0 | 59.5 | PF 1/2" | 50 |
| YCL-04B | 1/2" | 14.7 | 20.9 | 35.5 | 13.0 | 63.3 | PF 1/2" | 50 |
| YCL-06B | 3/4" | 19.2 | 26.4 | 43.0 | 13.0 | 71.7 | PF 3/4" | 50 |
| YCL-10B | 1" | 24.8 | 33.1 | 48.0 | 15.5 | 77.2 | PF 1" | 25 |
| YCL-12B | 1 1/4" | 33.0 | 41.9 | 58.0 | 18.0 | 95.2 | PF 1 1/4" | 20 |
| YCL-14B | 1 1/2" | 38.7 | 47.5 | 64.2 | 21.5 | 101.6 | PF 1 1/2" | 10 |
‧電鍍處理﹕電鋅〔電錏〕 TYPE ﹕YZL 90° PF牙
| 型號 | 規格 | Dimension (mm) | 牙制 | 包裝數量 | ||||
|
Catalog
No.
|
Nominal
Size
|
I.D | A | B | C | D | Thread |
Packing
Pcs/Bag
|
| YZL-03B | 3/8" | 11.2 | 20.9 | 30.0 | 10.5 | 50.3 | PF 1/2" | 50 |
| YZL-04B | 1/2" | 14.7 | 20.9 | 35.5 | 12.0 | 63.3 | PF 1/2" | 50 |
| YZL-06B | 3/4" | 19.2 | 26.4 | 43.0 | 13.0 | 64.7 | PF 3/4" | 50 |
| YZL-10B | 1" | 24.8 | 33.1 | 48.0 | 12.5 | 78.5 | PF 1" | 25 |
| YZL-12B | 1 1/4" | 33.0 | 41.9 | 58.0 | 15.5 | 86.5 | PF 1 1/4" | 20 |
| YZL-14B | 1 1/2" | 38.7 | 47.5 | 64.2 | 15.5 | 104.8 | PF 1 1/2" | 10 |
| YZL-20B | 2" | 49.0 | 59.0 | 86.6 | 18.5 | 114.1 | PF 2" | 10 |
| YZL-24B | 2 1/2" | 61.3 | 75.4 | 103.0 | 22.0 | 137.3 | PF 2 1/2" | |
| YZL-30B | 3" | 73.5 | 87.5 | 120.0 | 25.0 | 161.1 | PF 3" | |
| YZL-40B | 4" | 97.5 | 113.0 | 157.0 | 25.0 | 198.0 | PF 4" | |
