產品介紹
金屬管接頭系列

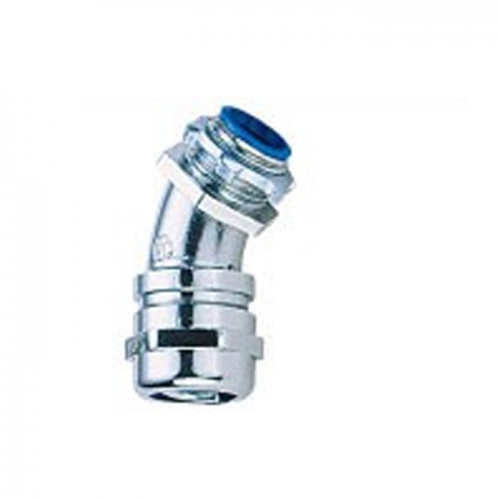

防水盒接頭 45度 PF牙(金屬料)
編號
YCH45
分享至
詳細說明
符合環保材質﹕ ROHS
‧TYPE ﹕YCH 45° PF牙

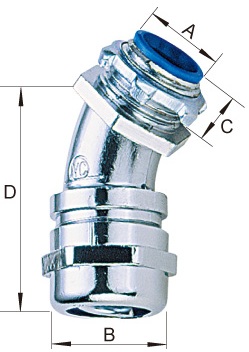

| 型號 | 規格 | Dimension (mm) | 牙制 | 包裝數量 | ||||
|
Catalog
No.
|
Nominal
Size
|
I.D | A | B | C | D | Thread |
Packing
Pcs/Bag
|
| YCH-03B | 3/8" | 11.2 | 20.9 | 30.0 | 13.0 | 52.0 | PF 1/2" | 50 |
| YCH-04B | 1/2" | 14.7 | 20.9 | 35.5 | 13.0 | 52.0 | PF 1/2" | 50 |
| YCH-06B | 3/4" | 19.2 | 26.4 | 40.0 | 13.0 | 70.0 | PF 3/4" | 25 |
| YCH-10B | 1" | 24.8 | 33.1 | 46.0 | 12.5 | 80.0 | PF 1" | 20 |
| YCH-12B | 1 1/4" | 33.0 | 41.9 | 57.0 | 15.5 | 97.0 | PF 1 1/4" | 10 |
| YCH-14B | 1 1/2" | 38.7 | 47.5 | 65.0 | 15.5 | 110.0 | PF 1 1/2" | 10 |
| YCH-20B | 2" | 49.0 | 59.0 | 78.0 | 18.5 | 130.0 | PF 2" | 5 |
| YCH-24B | 2 1/2" | 61.3 | 75.4 | 97.0 | 22.0 | 190.0 | PF 2 1/2" | |
| YCH-30B | 3" | 73.5 | 87.5 | 115.0 | 25.0 | 220.0 | PF 3" | |
| YCH-40B | 4" | 97.5 | 113.0 | 144.0 | 25.0 | 270.0 | PF 4" | |
