金屬管接頭系列

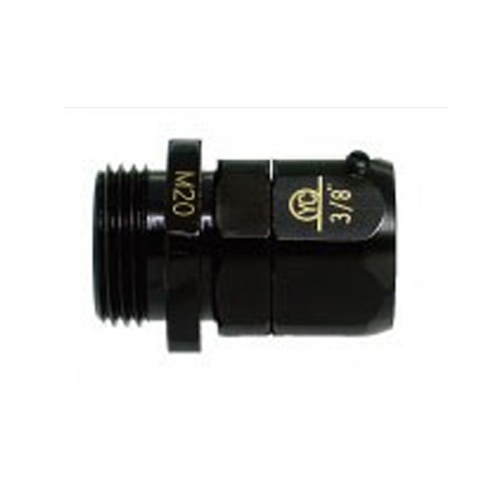

新型快速接頭(金屬料)
編號
YC
分享至
詳細說明
符合環保材質﹕ ROHS
【專利】台灣後蓋和主體合的專利是﹕ M276138 台灣後蓋分開的專利是﹕ M267683 大陸兩個形狀的專利是﹕ ZL 2005 2 0019314.2
‧TYPE：PG牙
‧TYPE：PG牙
| 型號 | 規格 | Dimension (mm) | 牙制 | |||||
|
Catalog
No.
|
Nominal
Size
|
I.D | A | B | C | D | E | Thread |
| YC-0307 | 3/8" | 11.3 | 8 | 21 | 8 | 35 | 21 | PG7 |
| YC-0309 | 3/8" | 11.3 | 8 | 21 | 8 | 35 | 21 | PG9 |
| YC-0311 | 3/8" | 11.3 | 8 | 21 | 8 | 35 | 21 | PG11 |
| YC-0313 | 3/8" | 11.3 | 8 | 21 | 8 | 35 | 25 | PG13.5 |
| YC-0316 | 3/8" | 11.3 | 8 | 21 | 8 | 35 | 25 | PG16 |
‧TYPE：PF牙
| 型號 | 規格 | Dimension (mm) | 牙制 | |||||
|
Catalog
No.
|
Nominal
Size
|
I.D | A | B | C | D | E | Thread |
| YC-03F04 | 3/8" | 11.3 | 10 | 21 | 10 | 37 | 25 | PF 1/2" |
‧TYPE：mm牙
| 型號 | 規格 | Dimension (mm) | 牙制 | |||||
|
Catalog
No.
|
Nominal
Size
|
I.D | A | B | C | D | E | Thread |
| YC-03M16 | 3/8" | 1.3 | 9 | 21 | 9 | 36 | 21 | M16x1.5 |
| YC-03M18 | 3/8" | 11.3 | 9 | 21 | 9 | 36 | 21 | M18x1.5 |
| YC-03M20 | 3/8" | 11.3 | 9 | 21 | 9 | 36 | 25 | M20x1.5 |
