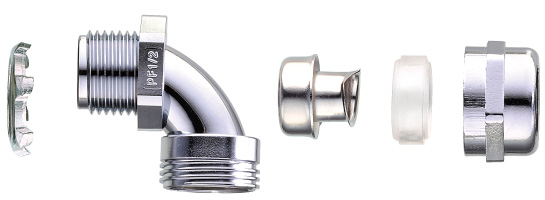

塑鋼金屬接頭 90 度
編號
YPL
分享至
詳細說明
◎【專利】台灣發明專利 ﹕I334251 大陸專利 ﹕ZL2007 2 0139666.0
◎符合環保材質﹕ ROHS
◎材質特性﹕防磁波干擾、抗腐蝕、耐震壓耐沖擊、不龜裂、不變形等
◎耐壓測試﹕472kgf 耐溫測試﹕146℃ 檢測單位﹕財團法人塑膠工業技術發展中心
‧ TYPE：PF牙
| 型號 | 規格 | Dimension (mm) | 牙制 | 包裝數量 | ||||
|
Catalog
No.
|
Nominal
Size
|
I.D | A | B | C | D | Thread |
Packing
Pcs/Bag
|
| YPL-03B | 3/8" | 11.2 | 20.6 | 28.0 | 15 | 46.2 | PF 1/2" | 50 |
| YPL-04B | 1/2" | 14.7 | 20.6 | 34.5 | 15 | 53.1 | PF 1/2" | 50 |
| YPL-06B | 3/4" | 19.2 | 26.0 | 42.0 | 15 | 66.8 | PF 3/4" | 50 |
| YPL-10B | 1" | 24.8 | 32.6 | 48.5 | 18 | 69.5 | PF 1" | 25 |
| YPL-12B | 1 1/4" | 33.0 | 42.0 | 58.0 | 18 | 85.0 | PF 1 1/4" | 20 |
| YPL-14B | 1 1/2" | 38.7 | 47.5 | 63.5 | 21 | 100.0 | PF 1 1/2" | 20 |
| YPL-20B | 2" | 49.0 | 60.0 | 70.5 | 21 | 104.5 | PF 2" | 10 |
‧TYPE：PG牙
| 型號 | 規格 | Dimension (mm) | 牙制 | 包裝數量 | ||||
|
Catalog
No.
|
Nominal
Size
|
I.D | A | B | C | D | Thread |
Packing
Pcs/Bag
|
|
YPL-0311
|
3/8" | 11.2 |
18.6
|
28.0
|
10
|
41.3
|
PG 11
|
50
|
|
YPL-0313
|
3/8" | 11.2 |
20.4
|
28.0
|
10
|
41.3
|
PG 13.5
|
50
|
|
YPL-0416
|
1/2" | 14.7 |
22.5
|
34.5
|
12
|
50.6
|
PG 16
|
50
|
|
YPL-0621
|
3/4" | 19.2 |
28.3
|
42.0
|
12
|
65.0
|
PG 21
|
50
|
| YPL-1029 | 1" | 24.8 |
37.0
|
48.5
|
12
|
61.7
|
PG 29
|
25
|
|
YPL-1236
|
1 1/4" | 33.0 |
47.0
|
58.0
|
12
|
79.5
|
PG 36
|
20
|
|
YPL-1442
|
1 1/2" | 38.7 |
54.0
|
63.5
|
15
|
94.0
|
PG 42
|
20
|
| YPL-2048 | 2" | 49.0 |
59.0
|
70.5
|
15
|
98.5
|
PG 48
|
10
|
‧TYPE：mm牙
| 型號 | 規格 | Dimension (mm) | 牙制 | 包裝數量 | ||||
|
Catalog
No.
|
Nominal
Size
|
I.D | A | B | C | D | Thread |
Packing
Pcs/Bag
|
| YPL-03M16 | 3/8" | 11.2 |
16
|
27.0
|
12
|
45.2
|
M16x1.5
|
50
|
| YPL-03M20 | 3/8" | 11.2 |
20
|
27.0
|
13
|
46.2
|
M20x1.5
|
50
|
| YPL-04M20 | 1/2" | 14.7 |
20
|
34.5
|
13
|
53.1
|
M20x1.5
|
50
|
| YPL-04M25 | 1/2" | 14.7 |
25
|
34.5
|
13
|
53.1
|
M25x1.5
|
50
|
| YPL-06M25 | 3/4" | 19.2 |
25
|
42.0
|
13
|
64.8
|
M25x1.5
|
50
|
|
YPL-06M32
|
3/4" | 19.2 |
32
|
42.0
|
15
|
66.8
|
M32x1.5
|
50
|
|
YPL-10M32
|
1" | 24.8 |
32
|
48.5
|
15
|
66.5
|
M32x1.5
|
50
|
| YPL-10M40 | 1" | 24.8 |
40
|
48.5
|
15
|
66.5
|
M40x1.5
|
50
|
| YPL-12M40 | 1 1/4" | 33.0 |
40
|
58.0
|
15
|
82.5
|
M40x1.5
|
30
|
|
YPL-12M50
|
1 1/4" | 33.0 |
50
|
58.0
|
18
|
85.5
|
M50x1.5
|
30
|
| YPL-14M50 | 1 1/2" | 38.7 |
50
|
63.5
|
18 |
97.0
|
M50x1.5
|
30
|
| YPL-14M63 |
1 1/2"
|
38.7 |
63
|
63.5
|
18
|
97.0
|
M63x1.5
|
30
|
|
YPL-20M50
|
2" | 49.0 |
50
|
70.5
|
18
|
101.5
|
M50x1.5
|
10
|
|
YPL-20M63
|
2" | 49.0 |
63
|
70.5
|
18
|
101.5
|
M63x1.5
|
10
|
